Brand Name : VIANS
Model Number : TK-913
Certification : CE,ROHS,FCC
Place of Origin : CHINA
MOQ : 1pcs
Price : Negotiation
Payment Terms : T/T, ,PAYPAL
Supply Ability : 20000PCS/MONTH
Delivery Time : 3-7 Working days
Packaging Details : 10pcs/carton
Protection Level : IP54 IK09
Max. Current : 3A
Max. Voltage : DC36V
LED : Yes
Product name : Touch Screen Door Exit Button
Dimensions : 86*86*20mm
Material : ABS+Plexiglass Panel
Electrical performance : 3A@36VDC
Special Features : Touch Screen
Operating temp : -10~+55 Degree
Output Contact : NO\NC\COM
Suitable Humidity : 0-95% (relative humidity)
Touch Sensor Door Exit Button LED Indicator Door Switch NO NC COM
Touch Sensor LED Indicator Door Switch NO/NC/COM Exit Button

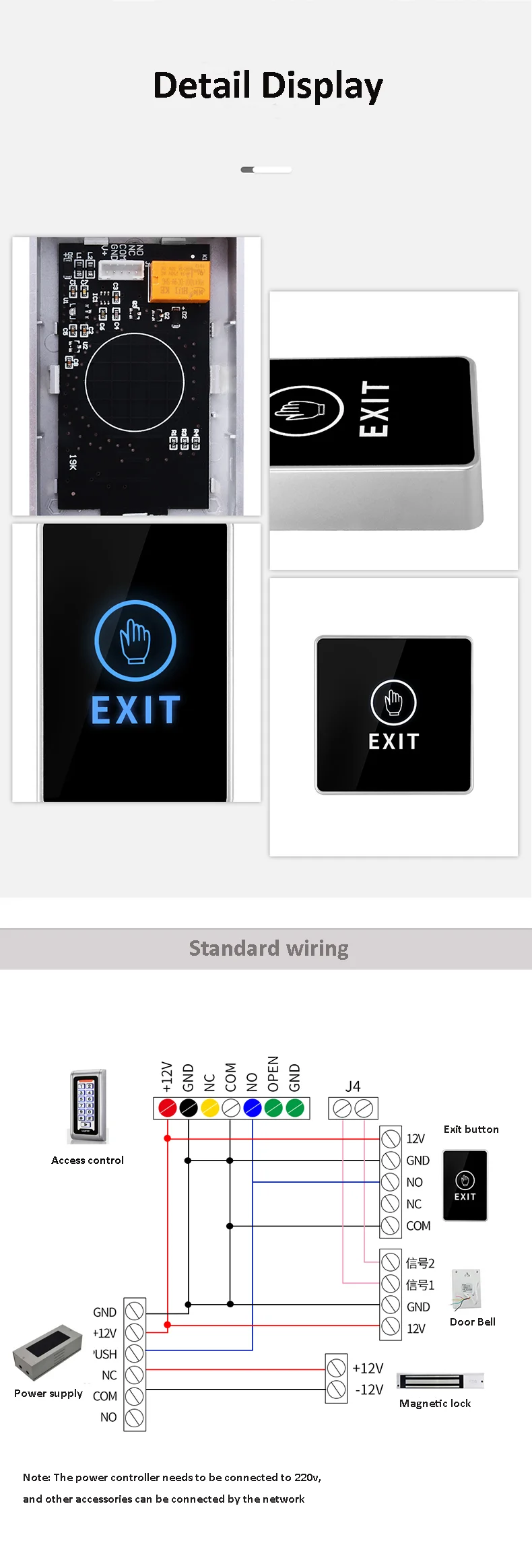

TK-913 12V Touch Switch is an touch sensor switch button with waterproof & dustproof design & LED indicators.It is easy to instal with NO/NC/COM Output.The12V Touch Switch is the Best Choice for Access Control Systems.
Model Number | TK-913 |
Product Name | Touch Screen Door Exit Button |
Material | ABS Plastic Case |
Product size | 86Lx86Wx20H (mm) |
Supply voltage | 12VDC or 24VDC |
Contact output | NO / NC / COM |
Maximum current: | 3A / 125-250VAC |
Endurance test: | 100,000 times |
LED indication: | blue (standby), green (trigger |
Packing parameters: | 100 pcs / 51 * 46 * 29CM |
